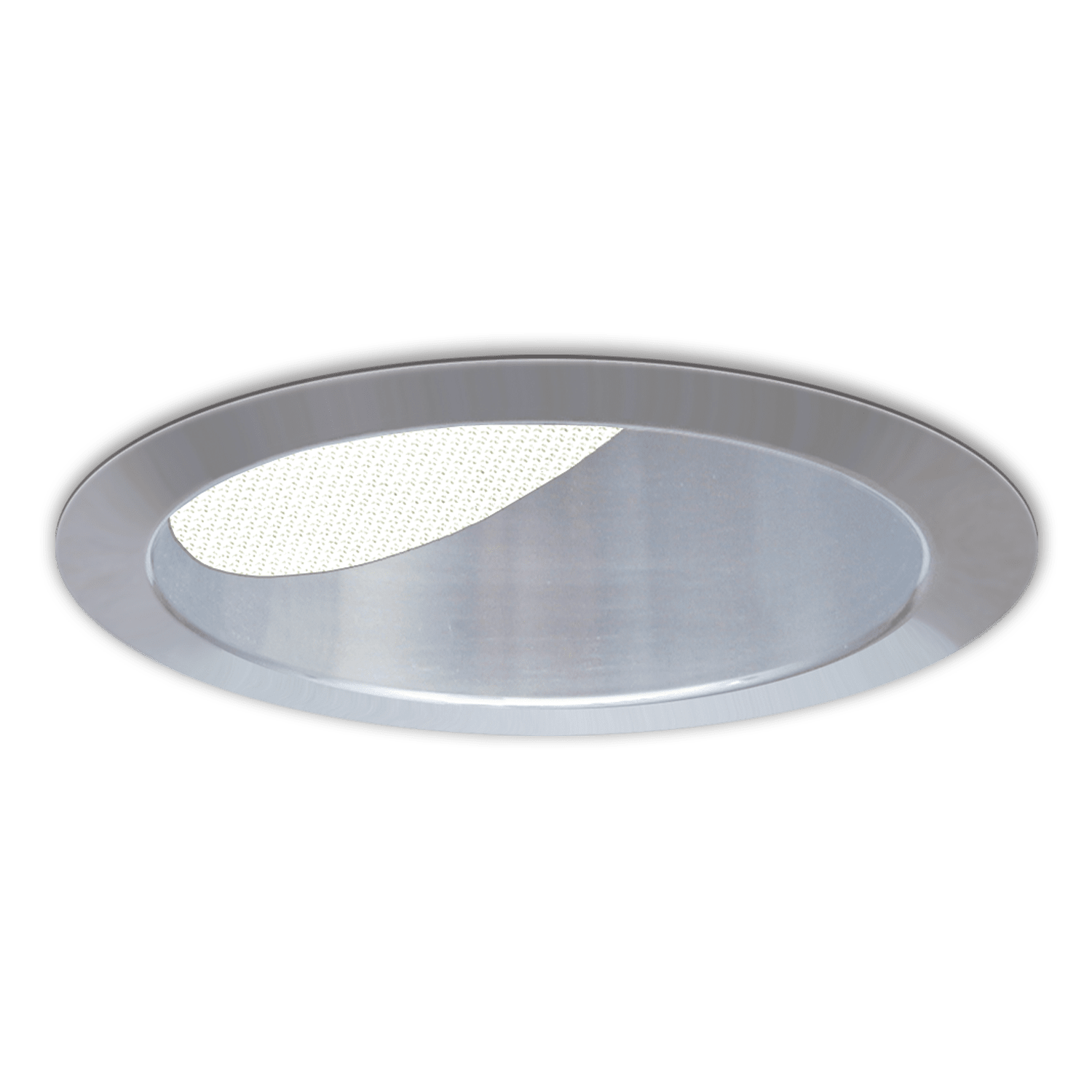

SRR-06616 6" Symphony Lensed High Output Wall Wash

Type IC Optional • 2500-5000L

25° Fixed Tilt • Used in conjunction with Symphony Remote Drivers

Product Specifications

  • Listings/Codes: Air Tight, FCC Part 15, IC Rated, IEC/EN 60601-1-2, UL Wet-Listed
  • Type: Wall Wash
  • Aperture/Size: 6″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 2772, 3330, 4141
  • Installation Type: Fire Box, New Construction, Remote Driver
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 35.2, 42.9, 57.4
  • Voltage: 120-277
  • Dimming: 0-10V, DMX
  • Lens: Regressed
  • Trim: Wall Wash
  • Fixture Depth: 5-5/8″
  • Emergency Options: Remote Inverter

Beam Spread

  • Wall Wash
    Wall Wash

Trim Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Custom Finish
