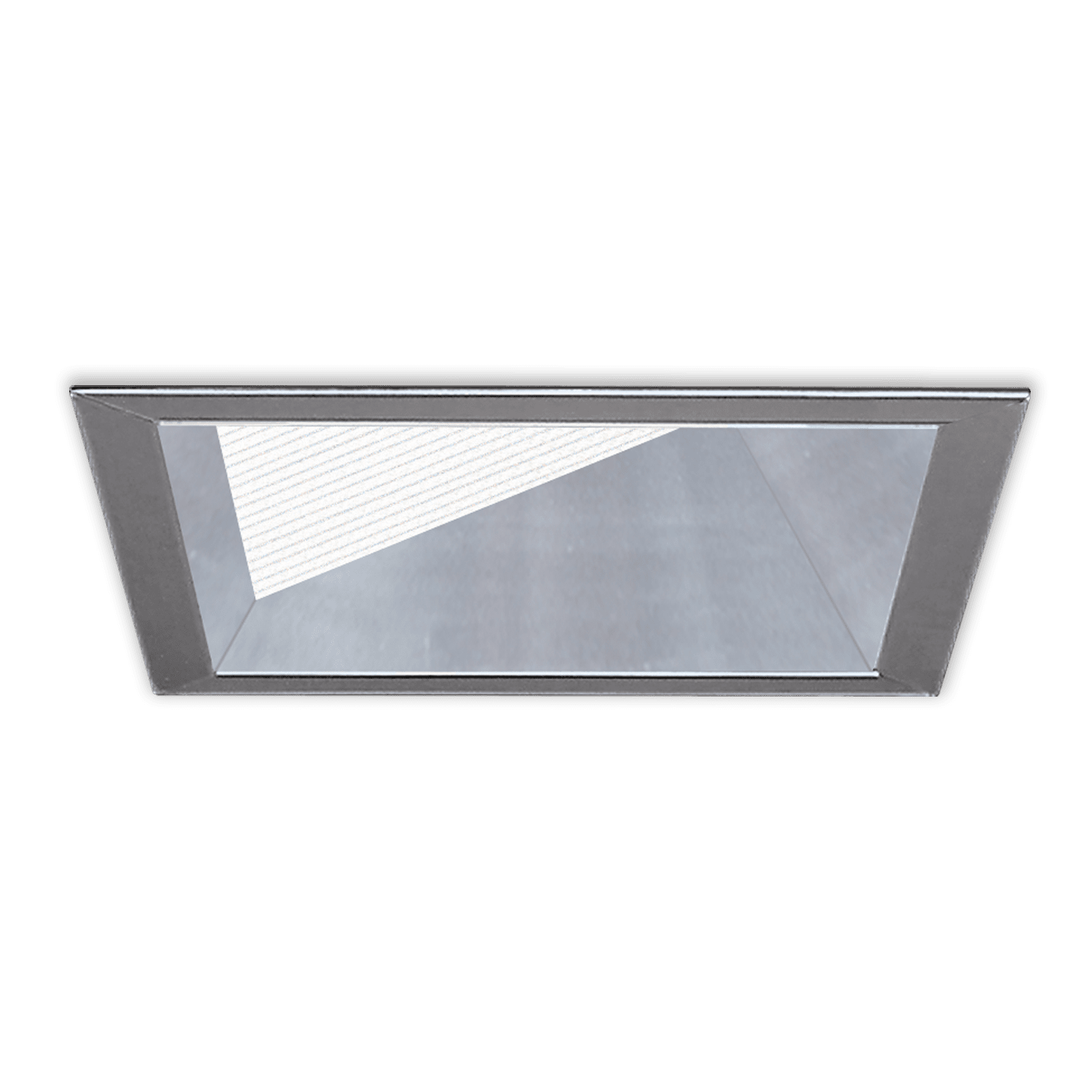

MRS-04804 4" Square Lensed Wall Wash

Type IC • Dead Front Option Available

1000-2000L • 25° Fixed Tilt

Product Specifications

  • Listings/Codes: FCC Part 15, IC Rated, IEC/EN 60601-1-2, Level 1 Infection Control, UL Wet-Listed
  • Type: Wall Wash
  • Aperture/Size: 4″
  • Mounting: Recessed
  • Shape: Square
  • Lumens: 802, 1385, 1741
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.3, 20.9, 28.6
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, Two Wire
  • Lens: Open Look
  • Trim: Dead Front, Flare
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • Wall Wash
    Wall Wash

Trim Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
