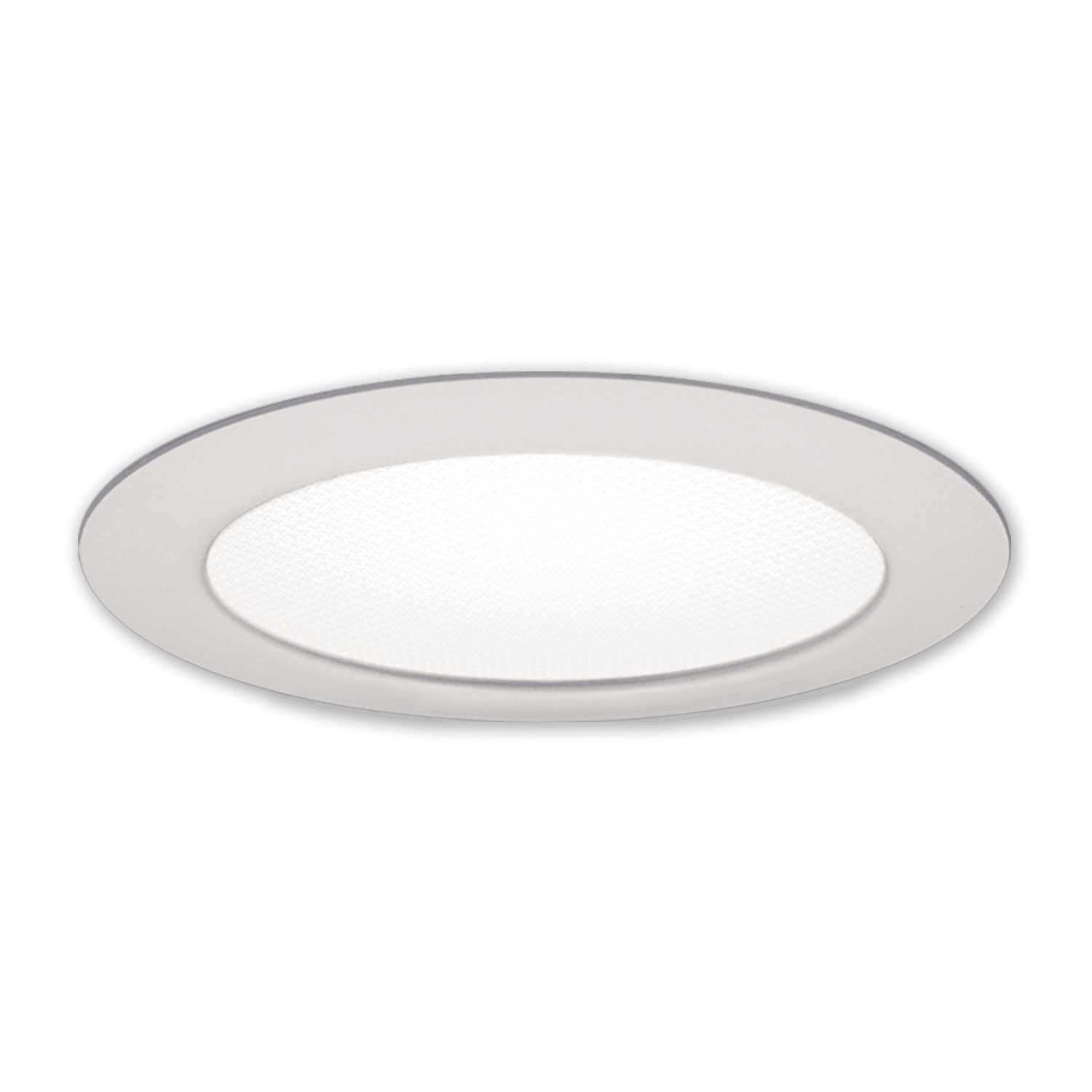

MRR-05825 5" Super Shallow Lensed Downlight

Flat Lens • Non-Conductive Round Trim

2500L • WFL Distribution

Product Specifications

  • Listings/Codes: FCC Part 15, IEC/EN 60601-1-2, Level 1 Infection Control, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 5″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 2409
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 36.8
  • Voltage: 120, 277
  • Dimming: 0-10V, EcoSystem, Three Wire, Two Wire
  • Lens: Flat
  • Trim: Dead Front, Flat, Glow Ring
  • Fixture Depth: 2-3/4″
  • Emergency Options: Remote Battery Backup

Beam Spread

  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Silver Enamel
    Silver Enamel
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
