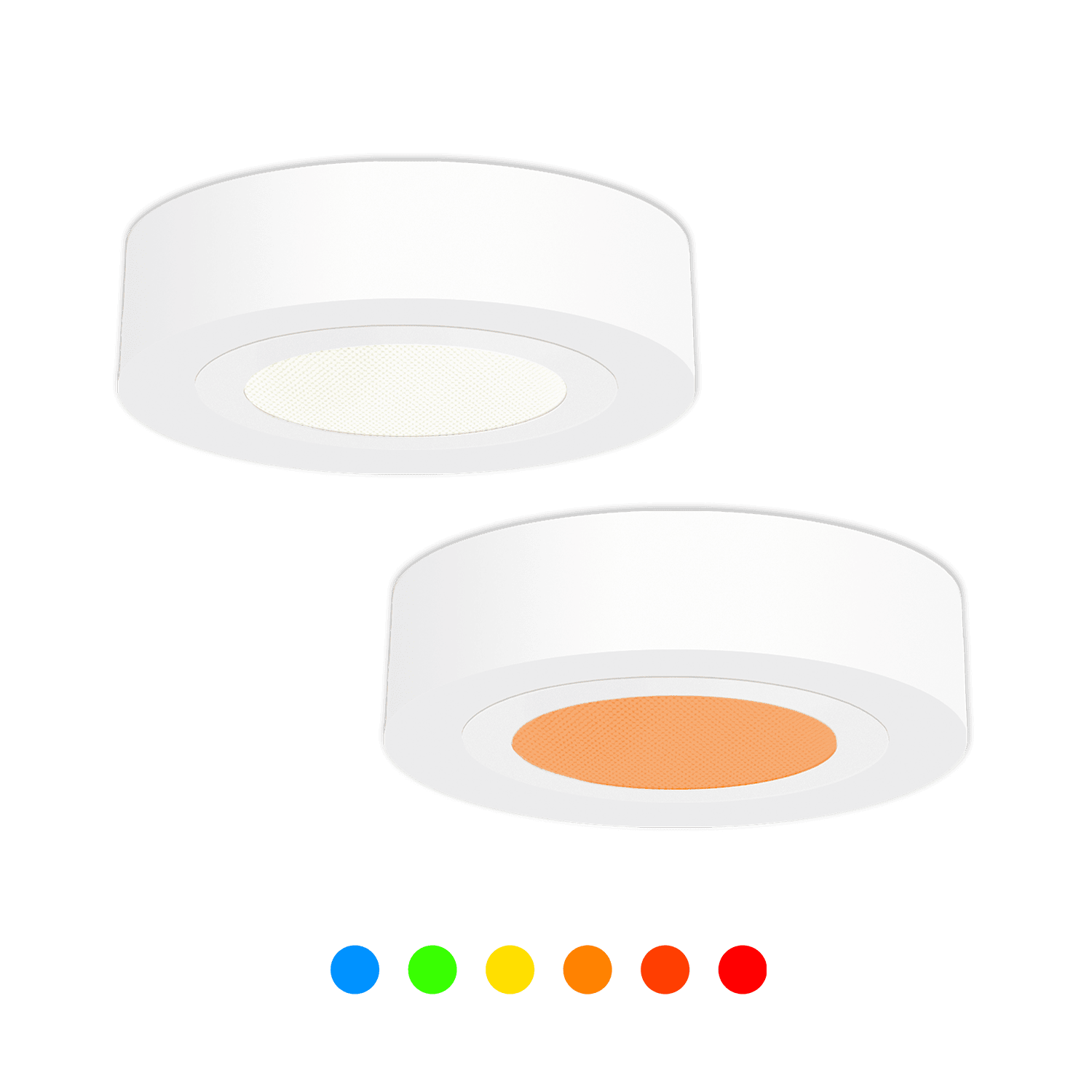

LSR-12493 Ambient+ Super Shallow 12" x 4" Cylinder Downlight

Two Color Switchable or Static Color LED

Surface or Pendant Mount • Vandal Lens Available • Swivel Mount Optional • Natatorium Option Available

Product Specifications

  • Listings/Codes: Build America, Buy America (BABAA), FCC Part 15, IEC/EN 60601-1-2, UL Wet-Listed, Vandal Resistant
  • Type: Cylinder
  • Aperture/Size: 12″
  • Mounting: Pendant, Surface
  • Shape: Round
  • Lumens:
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Ambient+, LED – Static Color
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber – 590nm, Blue – 465nm, Circadian – 617nm, Green – 521 nm, Red – 660nm, Red/Amber – 634nm
  • Wattage: 15.8-20.5, 24.5-30.6
  • Voltage: 120-277
  • Dimming: 0-10V
  • Lens: Flat
  • Trim: Flat
  • Fixture Depth: 4″
  • Emergency Options: Remote Inverter

Beam Spread

  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
