LSC-13SDN 13" x 9" Square "K-Lens" Downlight

Surface, Pendant or Wall Mount • High Efficacy COB LED

1000-7000L • 1% Dimming Standard • Swivel Mount Optional • WFL Distribution • Wet Listing Optional • Kirlin's Original Square Fresnel Lens (or see options)

Product Specifications

  • Listings/Codes: FCC Part 15, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 13″
  • Mounting: Aircraft Cable, Pendant, Surface, Wall
  • Shape: Square
  • Lumens: 1290, 1739, 2373, 2765, 3107, 4162, 5609, 6832, 7662
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 10.7, 14.4, 20.3, 24.7, 27.5, 36.7, 54.4, 69.1, 80.2
  • Voltage: 120, 120-277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC, Two Wire

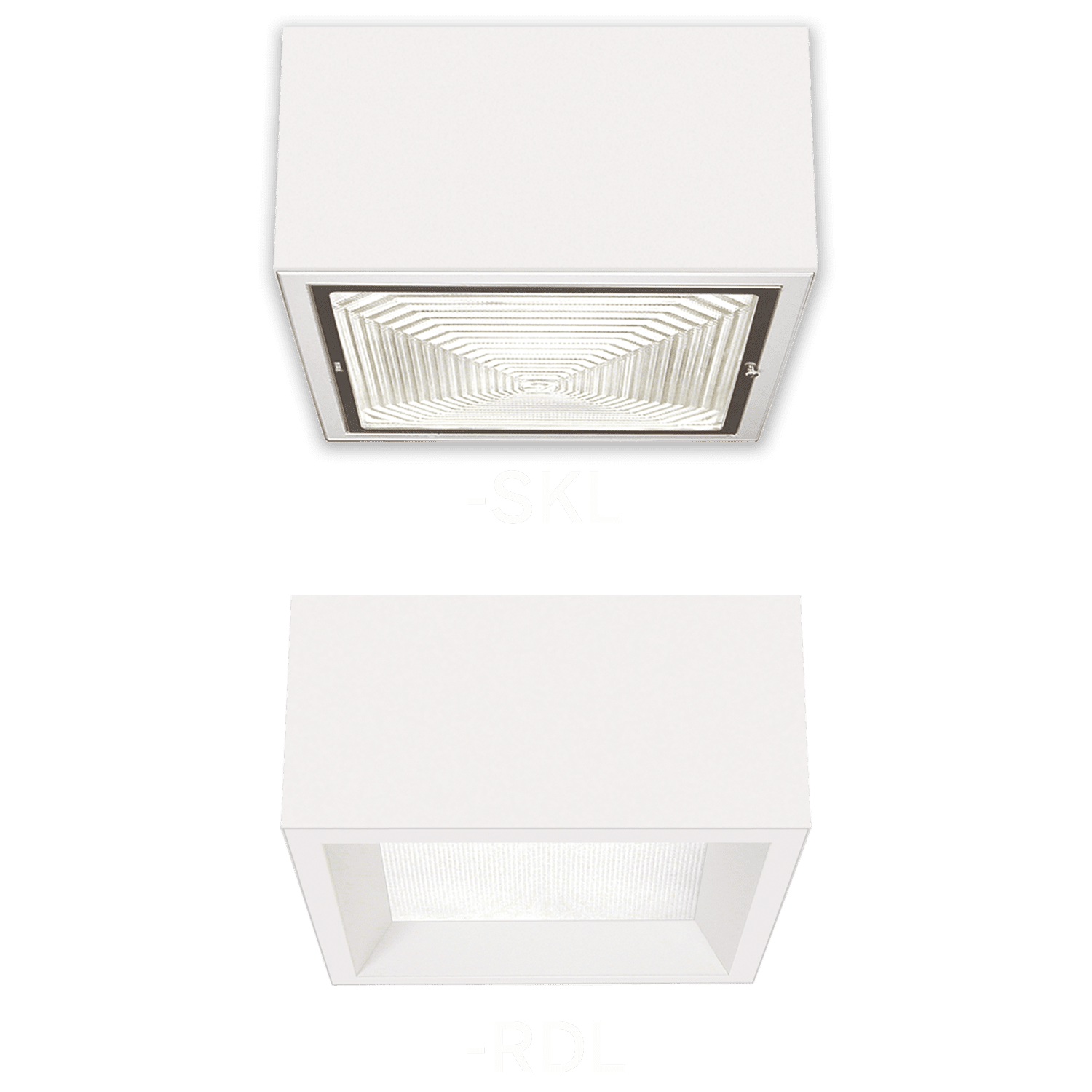

  • Lens: K-Lens, Regressed
  • Trim: Flare, Hinged Door
  • Fixture Depth: 9″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
