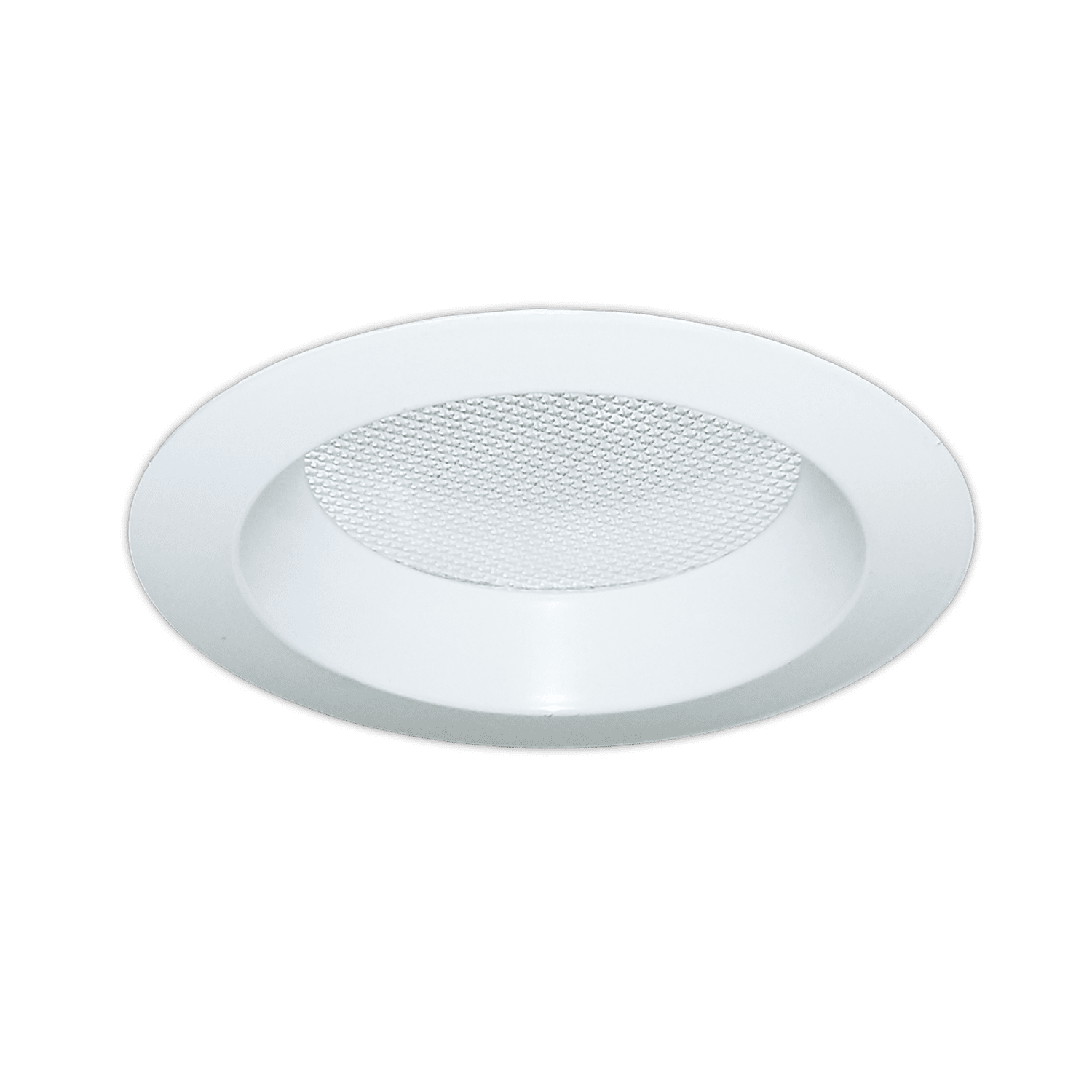

MRR-04820 4" Super Shallow Lensed Downlight

Type IC • Dead Front Option Available

2.75" Housing Depth • 1000-1500L • 3 Beam Spreads Available

Product Specifications

  • Listings/Codes: FCC Part 15, IC Rated, IEC/EN 60601-1-2, Level 1 Infection Control, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 4″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 976, 1685
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.4, 21
  • Voltage: 120, 277
  • Dimming: 0-10V
  • Lens: Regressed
  • Trim: Dead Front, Flare, Glow Ring
  • Fixture Depth: 2-3/4″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Silver Enamel
    Silver Enamel
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
