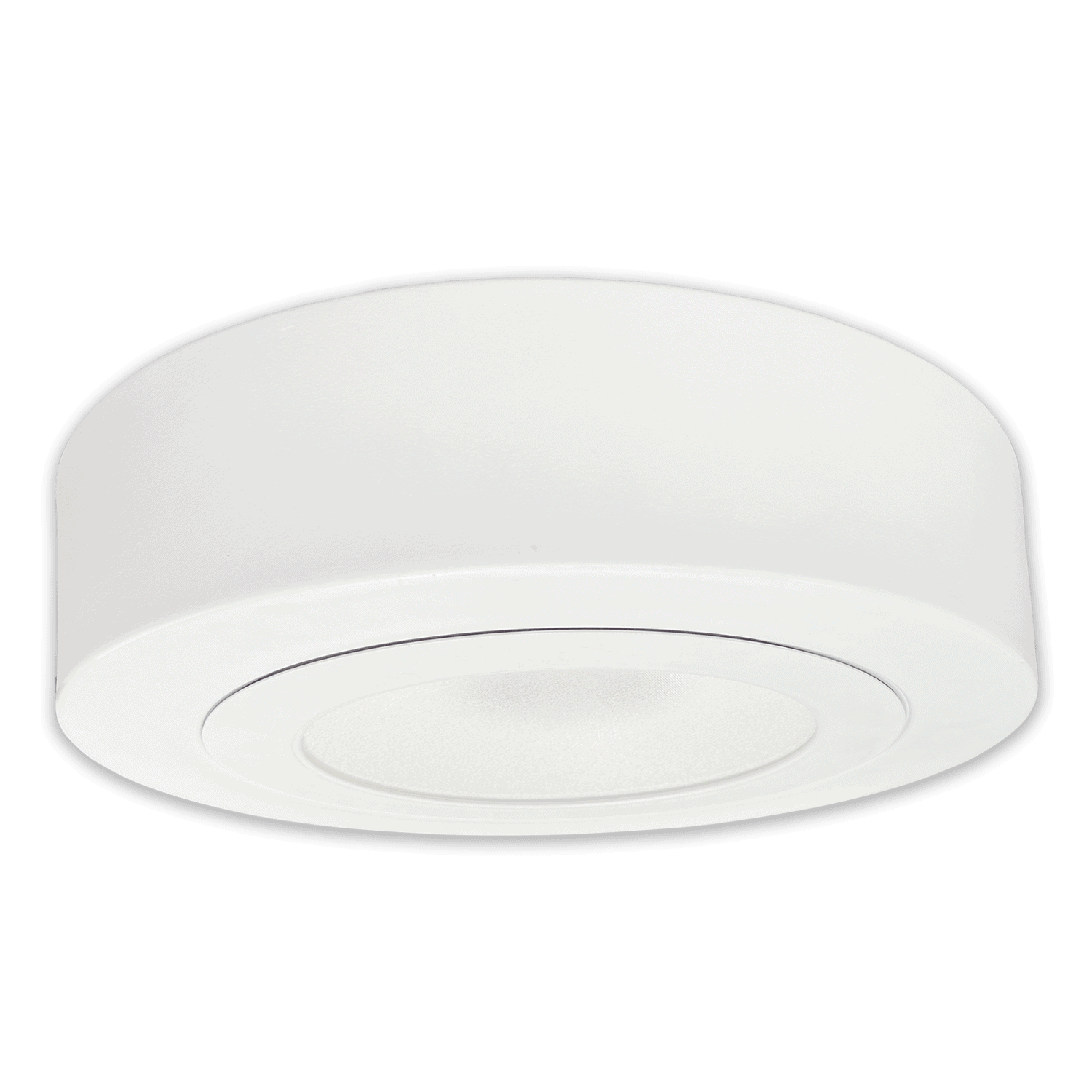

LSC-12RSD 12" x 4" Super Shallow Cylinder Downlight

Surface or Pendant Mount • High Efficacy COB LED

1000-4000L • 1% Dimming Standard • Swivel Mount Optional • 4 Beam Spreads Available

Product Specifications

  • Listings/Codes: FCC Part 15, UL Wet-Listed, Vandal Resistant
  • Type: Cylinder, Downlight
  • Aperture/Size: 12″
  • Mounting: Pendant, Surface
  • Shape: Round
  • Lumens: 1159, 1623, 2202, 2589, 2898, 3864
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White, LED – Tunable White, LED – Warm Dimming
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.7, 14.4, 20.3, 24.7, 27.5, 38.9
  • Voltage: 120, 120-277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC/ELV
  • Lens: Flat
  • Trim: Flat
  • Fixture Depth: 4″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
