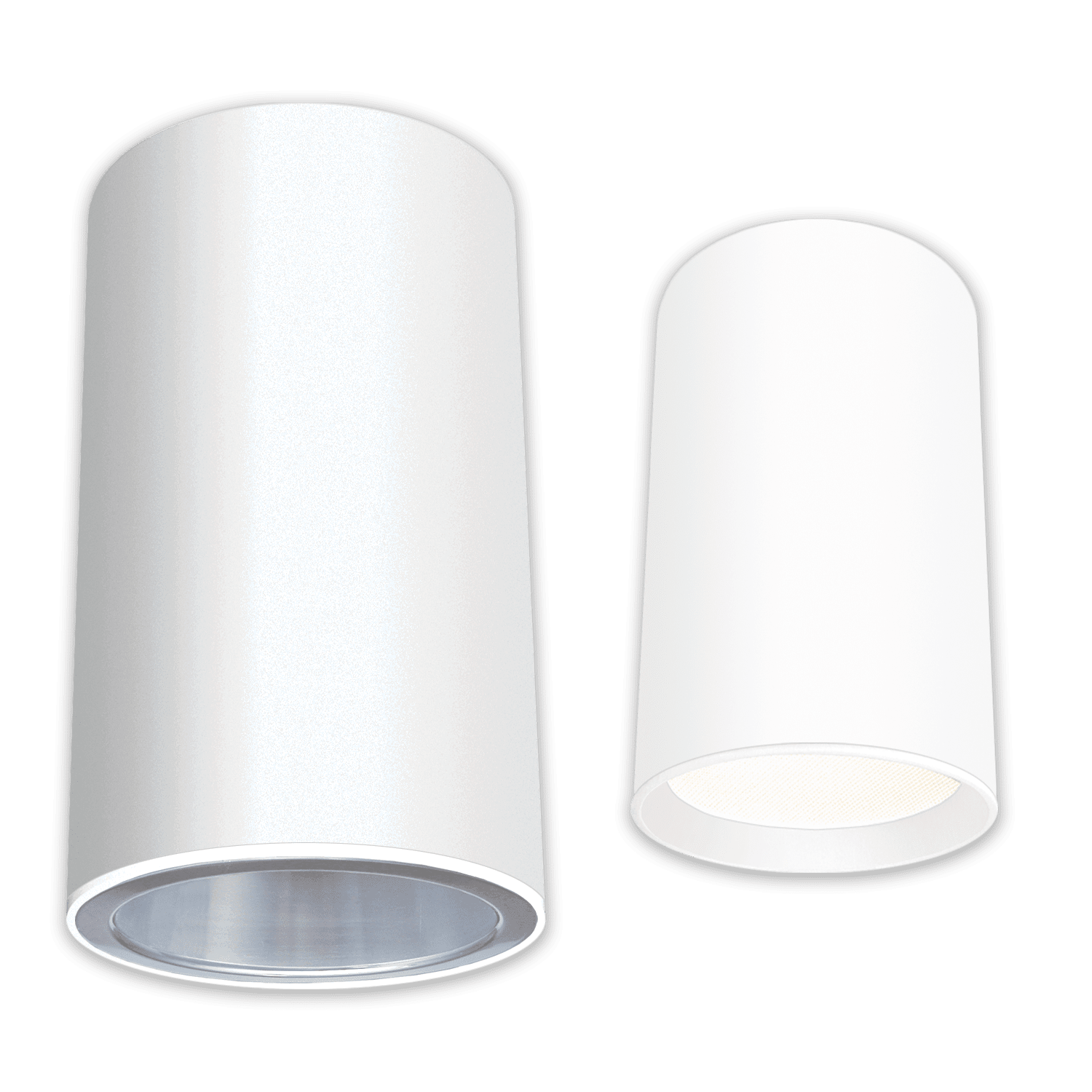

LSC-09RDN 9" x 16" Cylinder Downlight

Surface, Pendant or Wall Mount • High Efficacy COB LED

2000-6000L • 1% Dimming Standard • Swivel Mount Optional • 5 Beam Spreads Available • Wet Listing Optional

Product Specifications

  • Listings/Codes: Build America, Buy America (BABAA), Declare Listed, FCC Part 15
  • Type: Cylinder
  • Aperture/Size: 9″
  • Mounting: Aircraft Cable, Pendant, Surface, Wall
  • Shape: Round
  • Lumens: 2379, 2772, 3115, 4172, 5623, 6849
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White, LED – Tunable White, LED – Warm Dimming
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 20.3, 24.7, 27.5, 36.7, 53.8, 69.1
  • Voltage: 120, 120-277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC/ELV
  • Lens: Open Look, Regressed
  • Trim: Deep Cone, Flare
  • Fixture Depth: 16″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL
  • VWFL 95 Degrees
    VWFL

Trim & Housing Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
