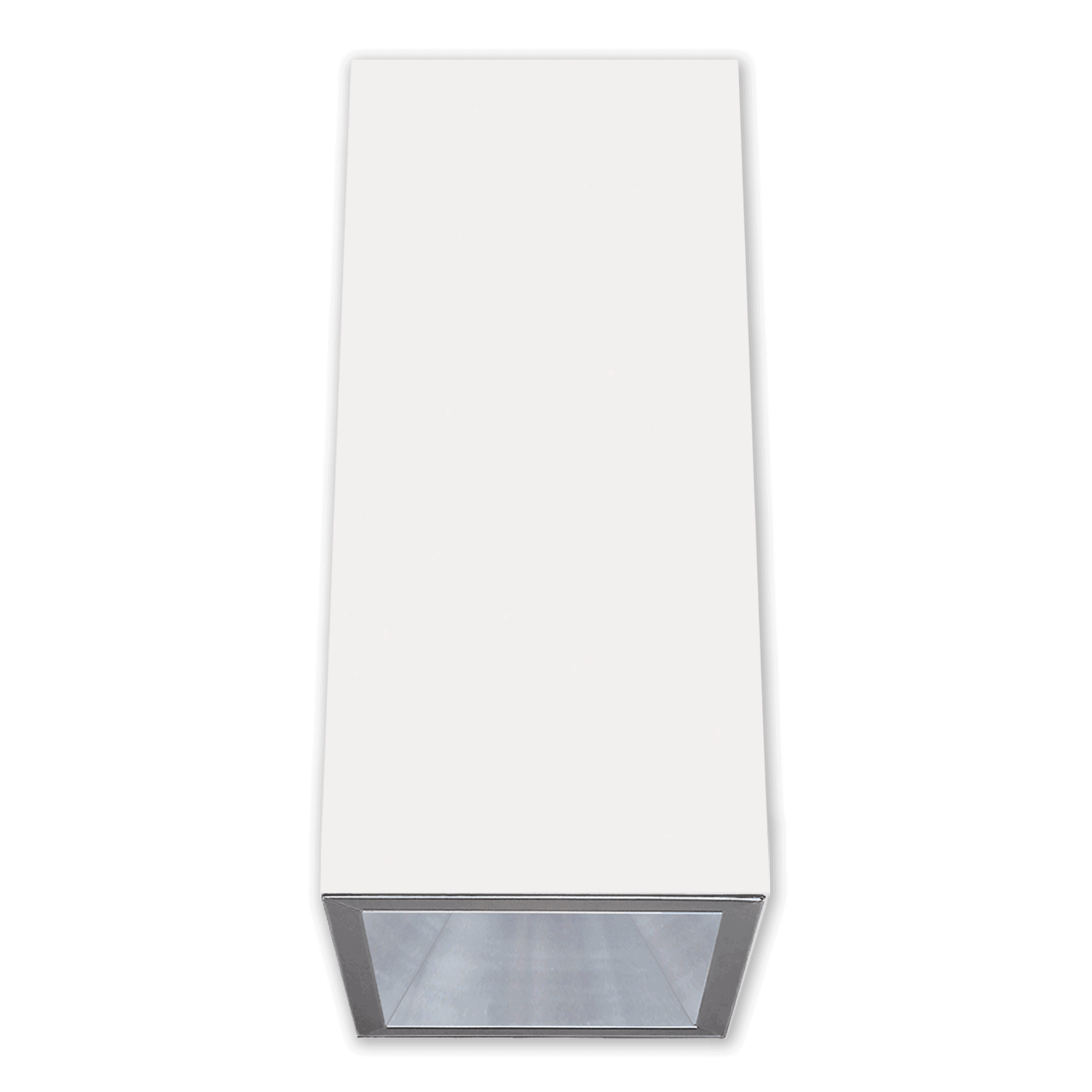

LSC-07SDN 7" x 18" Square Cylinder

Surface, Pendant or Wall Mount • High Efficacy COB LED

1000-7000L • 1% Dimming Standard • Swivel Mount Optional • 4 Beam Spreads Available • Wet Listing Optional

Product Specifications

  • Listings/Codes: FCC Part 15, UL Wet-Listed
  • Type: Cylinder
  • Aperture/Size: 7″
  • Mounting: Aircraft Cable, Pendant, Surface, Wall
  • Shape: Square
  • Lumens: 2032, 2366, 2661, 3559, 4798, 5847, 6555
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White, LED – Tunable White, LED – Warm Dimming
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 20.3, 24.7, 27.5, 36.7, 54.4, 69.1, 80.2
  • Voltage: 120, 120-277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC/ELV
  • Lens: Open Look
  • Trim: Deep Cone
  • Fixture Depth: 18″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim & Housing Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
