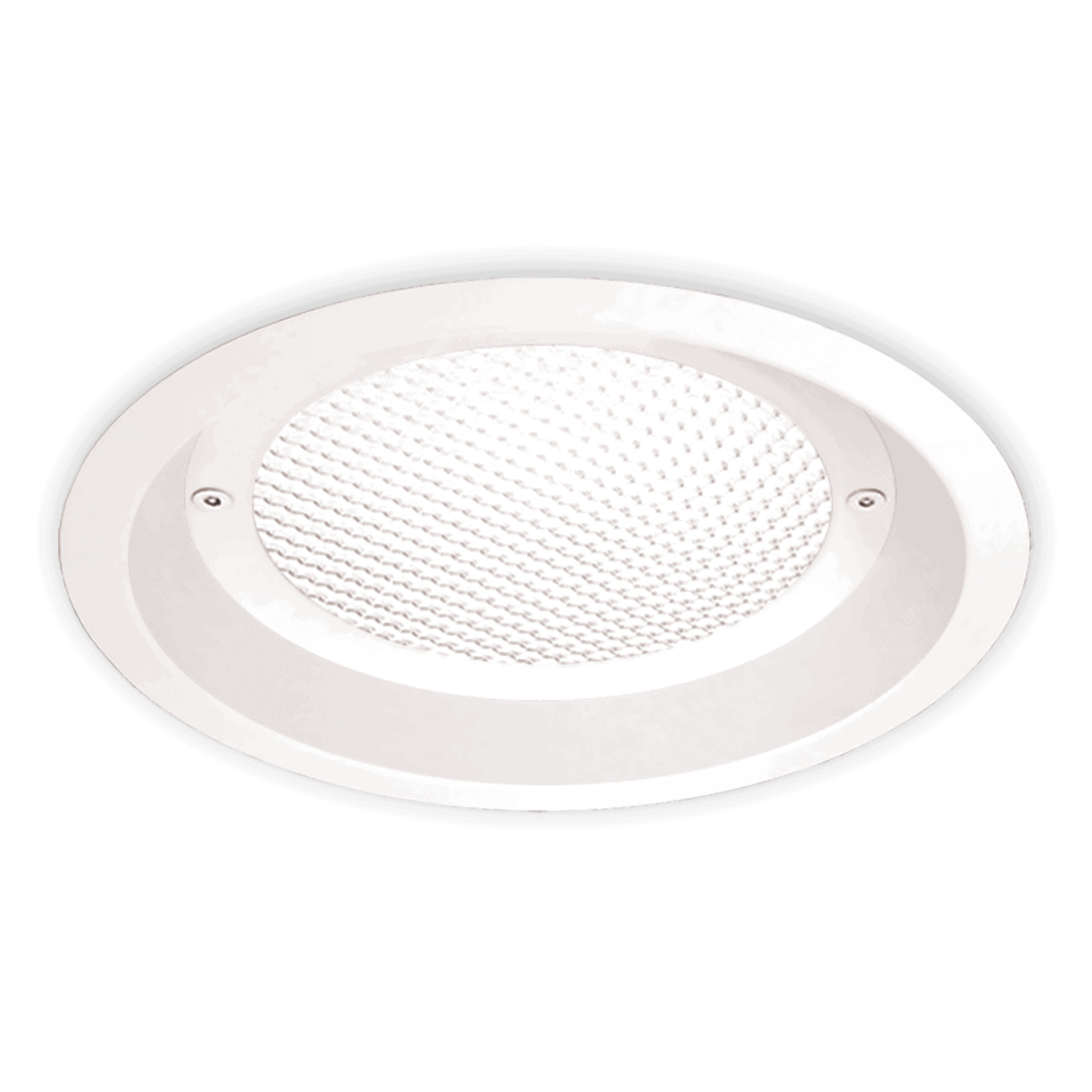

LRV-08470 8" Vandal Resistant Downlight

Natatorium Option Available

2500-6500L • Chicago Plenum Approved Option Available • 3 Beam Spreads

Product Specifications

  • Listings/Codes: -40°C Temperature Rating, Build America, Buy America (BABAA), CCEA, FCC Part 15, IEC/EN 60601-1-2, IK10, UL Wet-Listed, Vandal Resistant
  • Type: Downlight
  • Aperture/Size: 8″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 2754, 3896, 4857, 5219
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 37, 44.7, 59.8, 72.6
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, EcoSystem
  • Lens: Regressed
  • Trim: Flare, Ligature-Resistant
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
