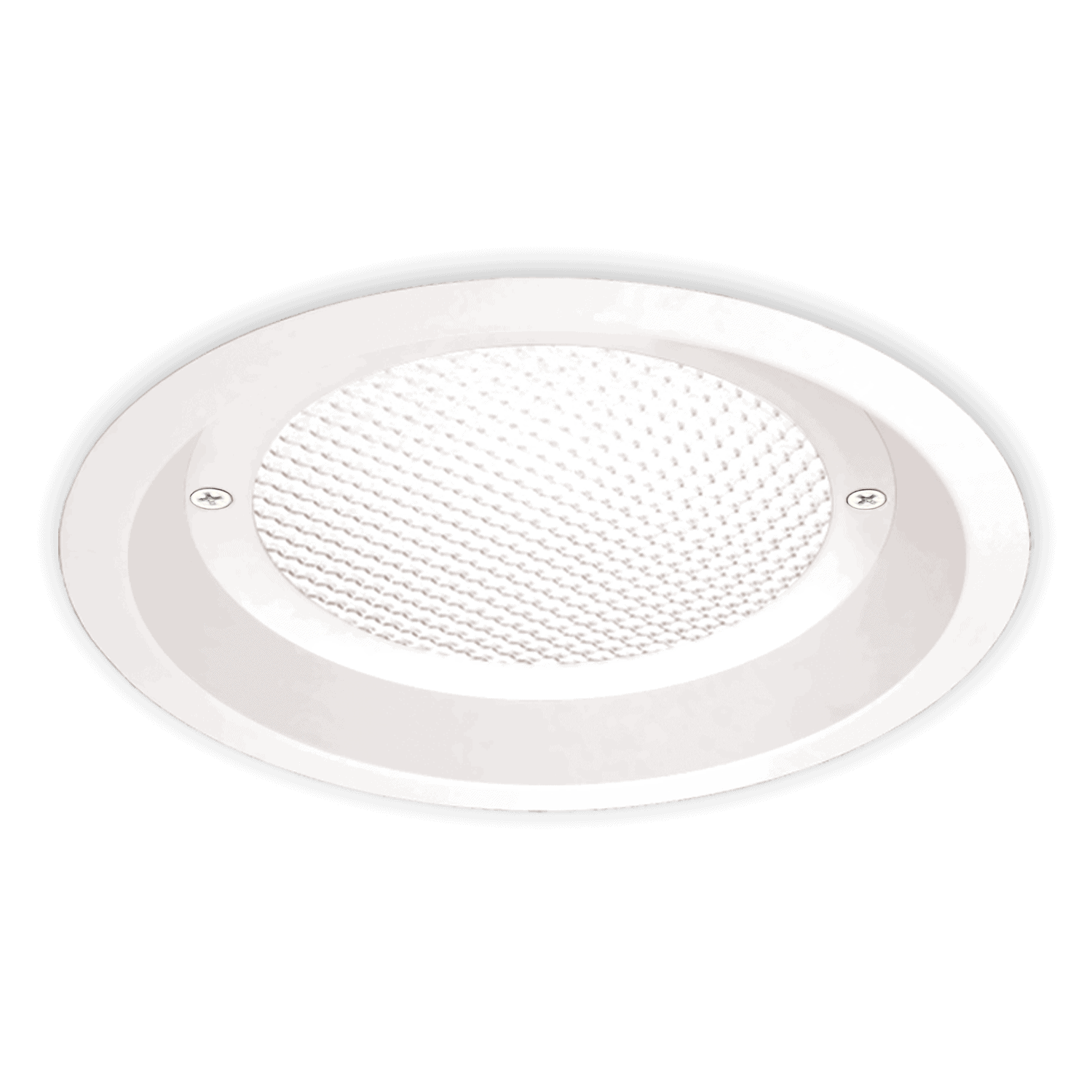

LRR-07462 7" IP65 Downlight

Type IC • IP65 Rated

1000-2000L • NSF Rated Option • Chicago Plenum Approved Option • 4 Beam Spreads Available

Product Specifications

  • Listings/Codes: Air Tight, CCEA, FCC Part 15, IC Rated, IEC/EN 60601-1-2, IP65, NSF/ANSI 2, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 7″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 996, 1721, 2163
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.3, 20.8, 28.5
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, Two Wire
  • Lens: Regressed
  • Trim: Dead Front, Flare
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
