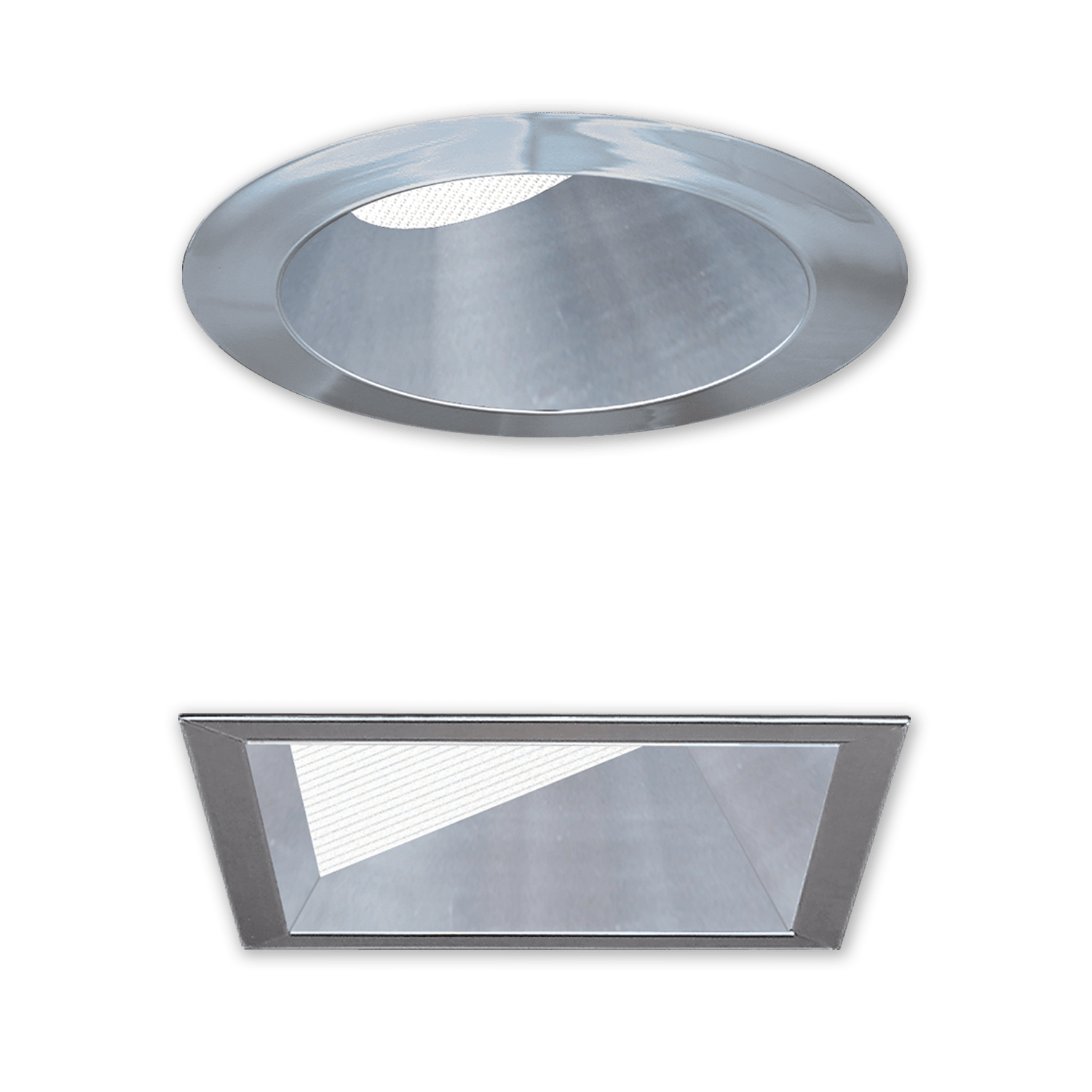

LRC-04LWW 4" Lensed Wall Wash

Type IC to 2500L • Round or Square • High Efficacy COB LED

750-3000L • 20° Fixed Tilt

Product Specifications

  • Listings/Codes: Air Tight, FCC Part 15, IC Rated, Level 1 Infection Control, UL Wet-Listed
  • Type: Wall Wash
  • Aperture/Size: 4″
  • Mounting: Recessed
  • Shape: Round, Square
  • Lumens: 782, 1069, 1468, 1707, 1923, 2550
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 10.7, 14.4, 20.3, 24.7, 27.5, 39.2
  • Voltage: 120, 120-277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC, Two Wire
  • Lens: Regressed
  • Trim: Dead Front, Wall Wash
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
