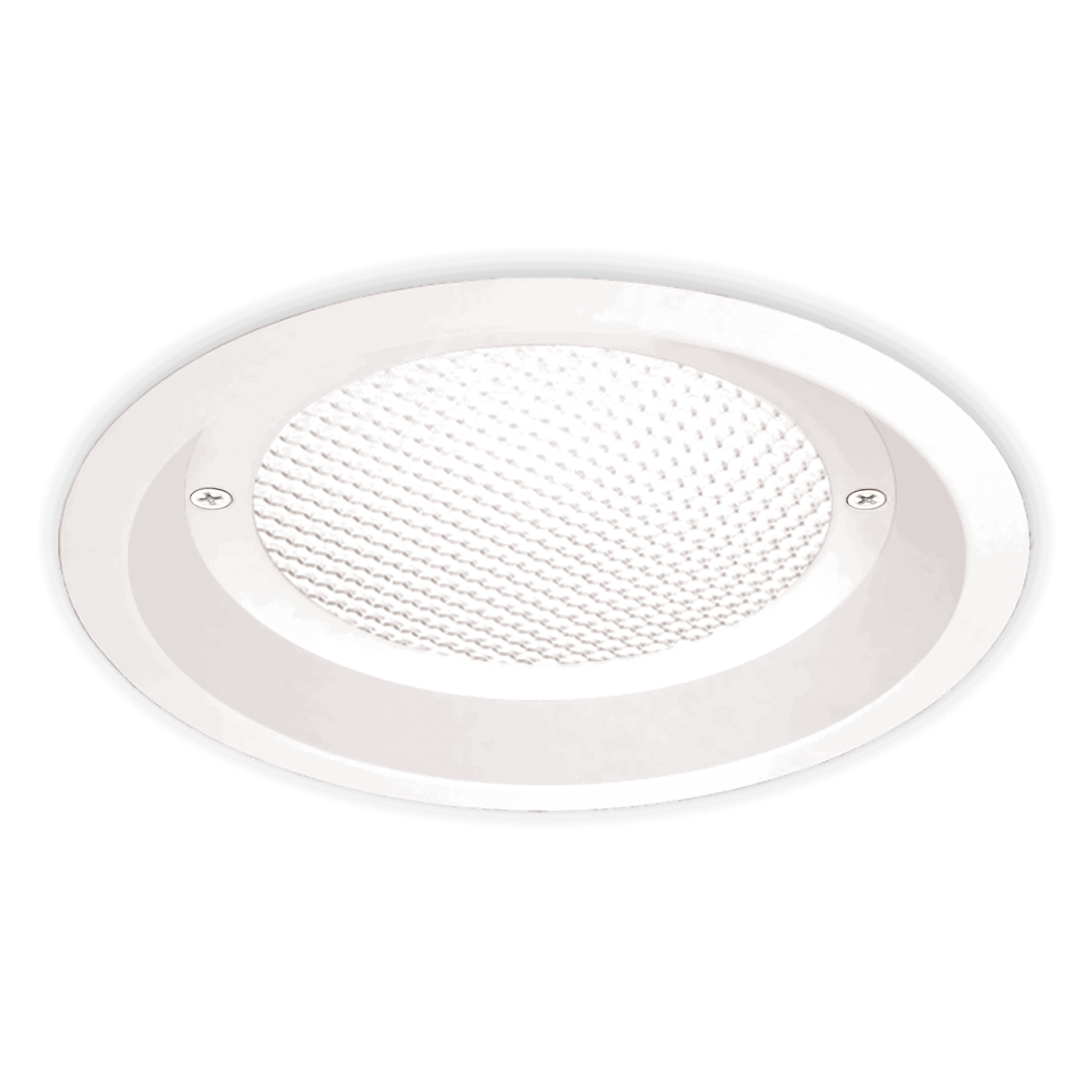

LRR-08466 8" Clean Room Downlight

IP65 Rated Option • NSF Rated Option Available

2500-6500L • ISO 5 / Class 100 Cleanroom • Chicago Plenum Approved • 3 Beam Spreads Available

Product Specifications

  • Listings/Codes: -40°C Temperature Rating, CCEA, FCC Part 15, IEC/EN 60601-1-2, IP65, ISO 5 (Class 100) Cleanroom, Level 1 Infection Control, Level 2 Infection Control, Level 3 Infection Control, NSF/ANSI 2, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 8″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 3030, 4259, 5310, 6257
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 36.9, 42.4, 56.7, 72.9
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, EcoSystem
  • Lens: Regressed
  • Trim: Flare
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
