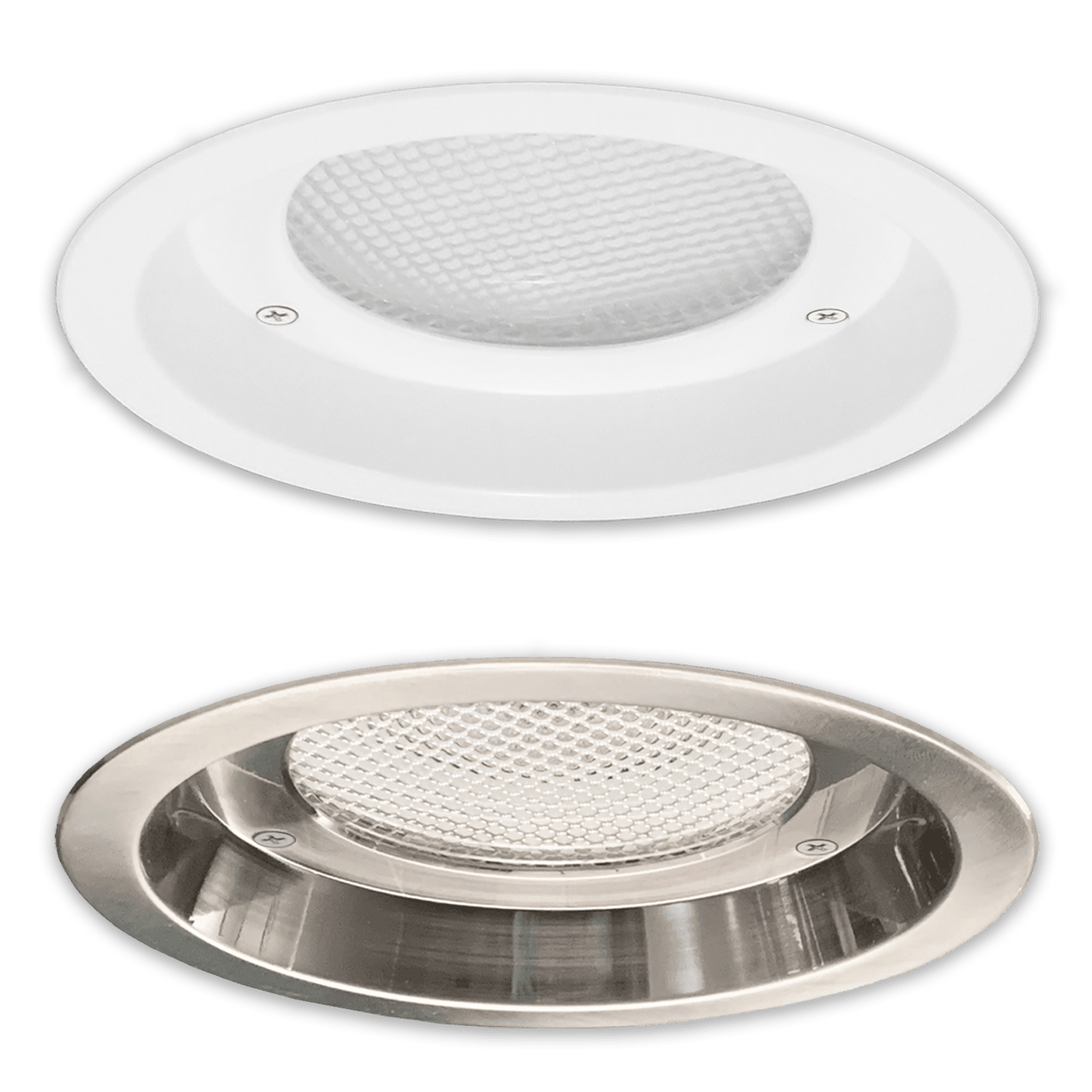

LRC-06IPD 6" IP66 Downlight

Type IC to 4000L • High Efficacy COB LED

1000-7000L • NSF Rated • ISO 5 / Class 100 Cleanroom Optional • Concrete Pour Optional • 4 Beam Spreads Available

Product Specifications

  • Listings/Codes: Air Tight, Build America, Buy America (BABAA), Declare Listed, FCC Part 15, IC Rated, IP66, ISO 5 (Class 100) Cleanroom, Level 1 Infection Control, Level 2 Infection Control, Level 3 Infection Control, NSF/ANSI 2, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 6″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 1161, 1586, 2177, 2533, 2853, 3579, 4825, 5880, 6592
  • Installation Type: Concrete Pour, Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White, LED – Tunable White, LED – Warm Dimming
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.7, 14.4, 20.3, 24.7, 27.5, 36.7, 54.4, 69.1, 79.1
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC/ELV
  • Lens: Regressed
  • Trim: Flare
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Brushed Nickel
    Brushed Nickel
  • Silver Enamel
    Silver Enamel
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
