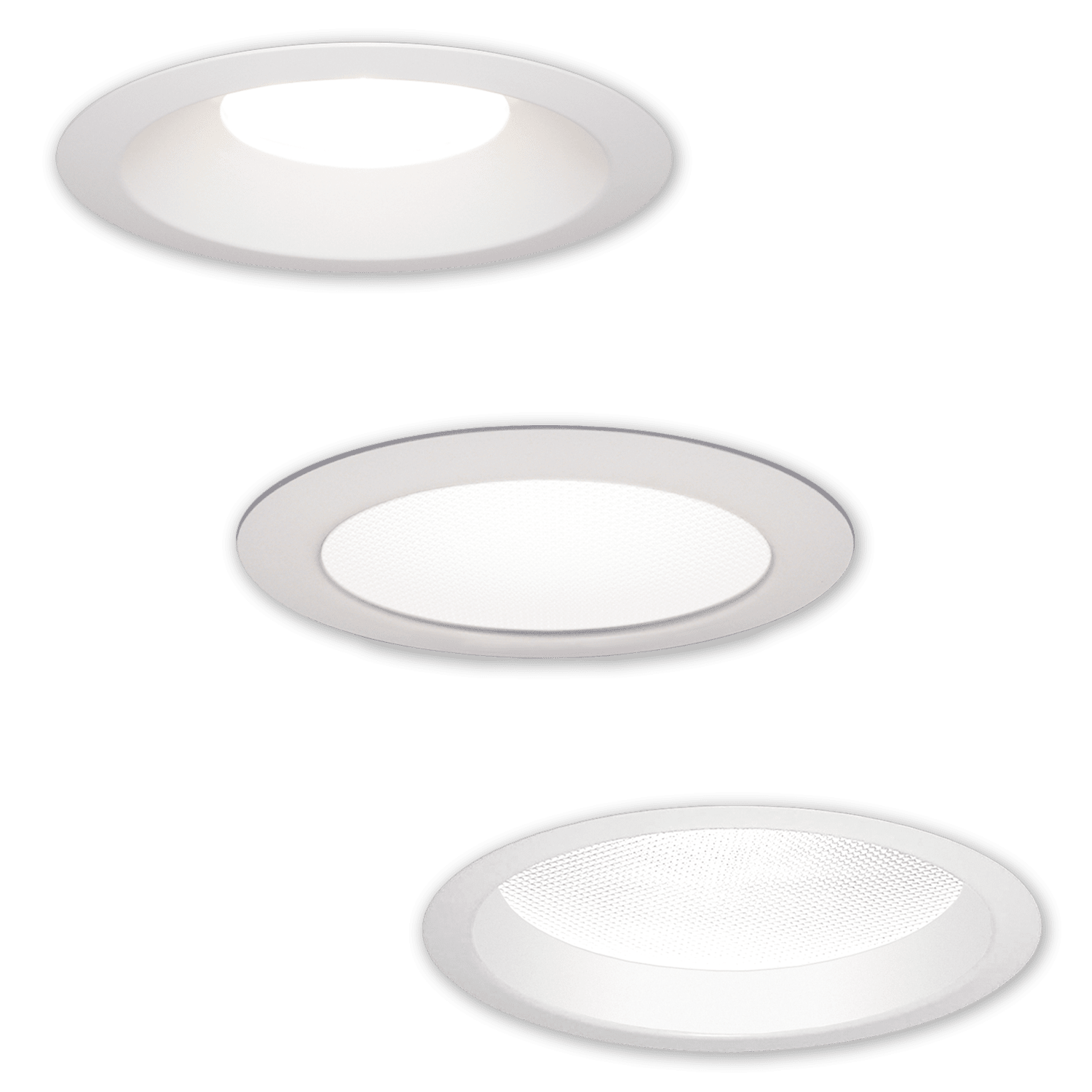

LRC-05SDN 5"-6" Super Shallow Lensed Downlight

Type IC to 3000L • High Efficacy COB LED

2.75" Housing Depth • 1000-4000L • 4 Beam Spreads Available • Flare, Flat, or Regressed Lens

Product Specifications

  • Listings/Codes: FCC Part 15, IC Rated, Level 1 Infection Control, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 5″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 1214, 1659, 2277, 2650, 2984, 3957
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White, LED – Tunable White, LED – Warm Dimming
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 10.7, 14.4, 20.3, 24.7, 27.5, 39.2
  • Voltage: 120, 120-277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, TRIAC/ELV
  • Lens: Flat, Regressed
  • Trim: Dead Front, Flare, Flat, Glow Ring
  • Fixture Depth: 2-3/4″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
