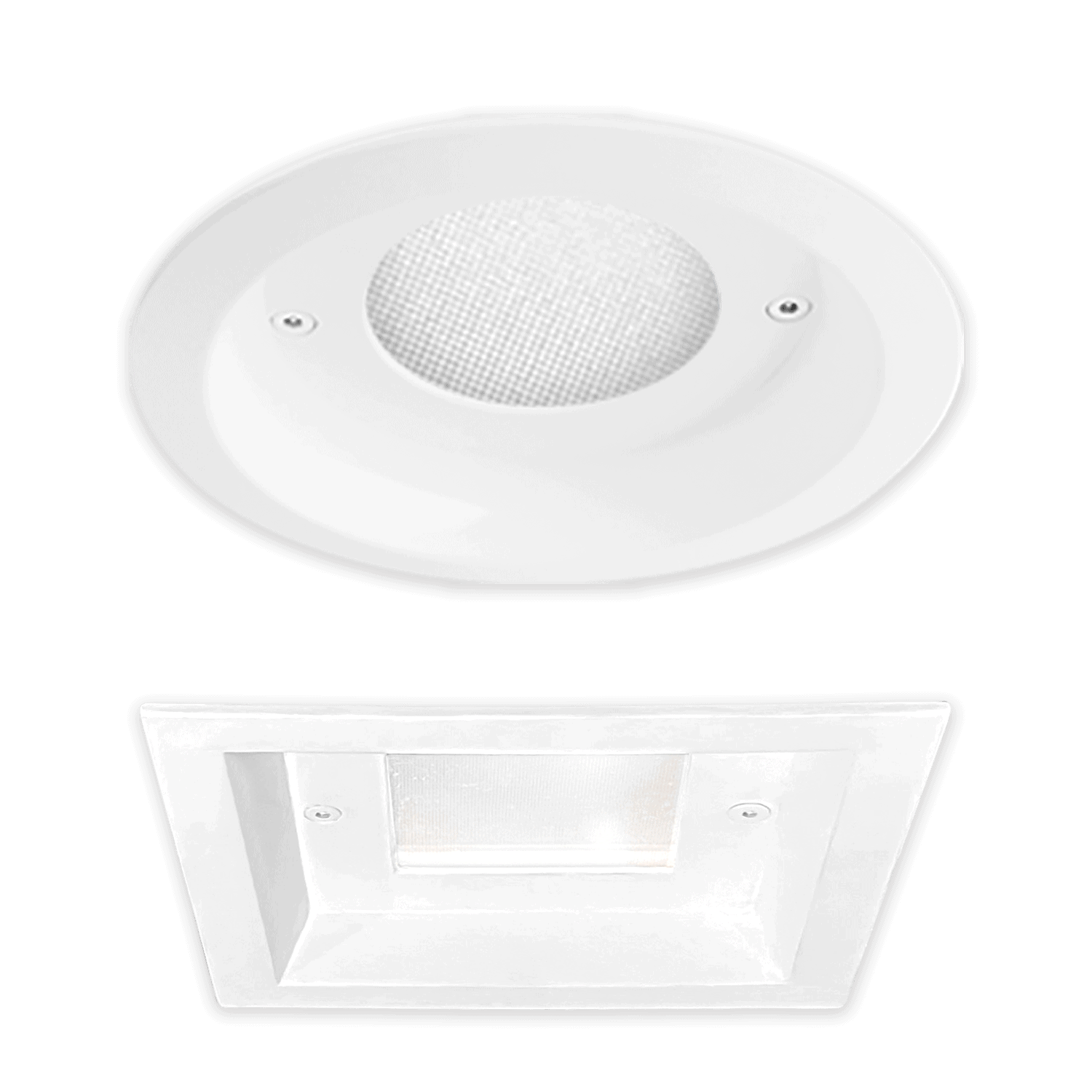

LRC-04VND 4" Ligature and Vandal Resistant Downlight

Type IC • High Efficacy COB LED

1000-2500L • IK10 Impact Resistant • IP66 Optional • ISO 5 / Class 100 Cleanroom Optional • 3 Beam Spreads Available

Product Specifications

  • Listings/Codes: Air Tight, FCC Part 15, IC Rated, IK10, IP66, ISO 5 (Class 100) Cleanroom, Level 1 Infection Control, Level 2 Infection Control, Level 3 Infection Control, UL Wet-Listed, Vandal Resistant
  • Type: Downlight
  • Aperture/Size: 4″
  • Mounting: Recessed
  • Shape: Round, Square
  • Lumens: 801, 1509, 1751, 1978
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.5, 20.4, 24.3, 27
  • Voltage: 120, 120-277
  • Dimming: 0-10V, TRIAC
  • Lens: Regressed
  • Trim: Flare, Ligature-Resistant
  • Fixture Depth: 5-5/8″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • BioGard (Antimicrobial)
    BioGard (Antimicrobial)
  • Custom Finish
