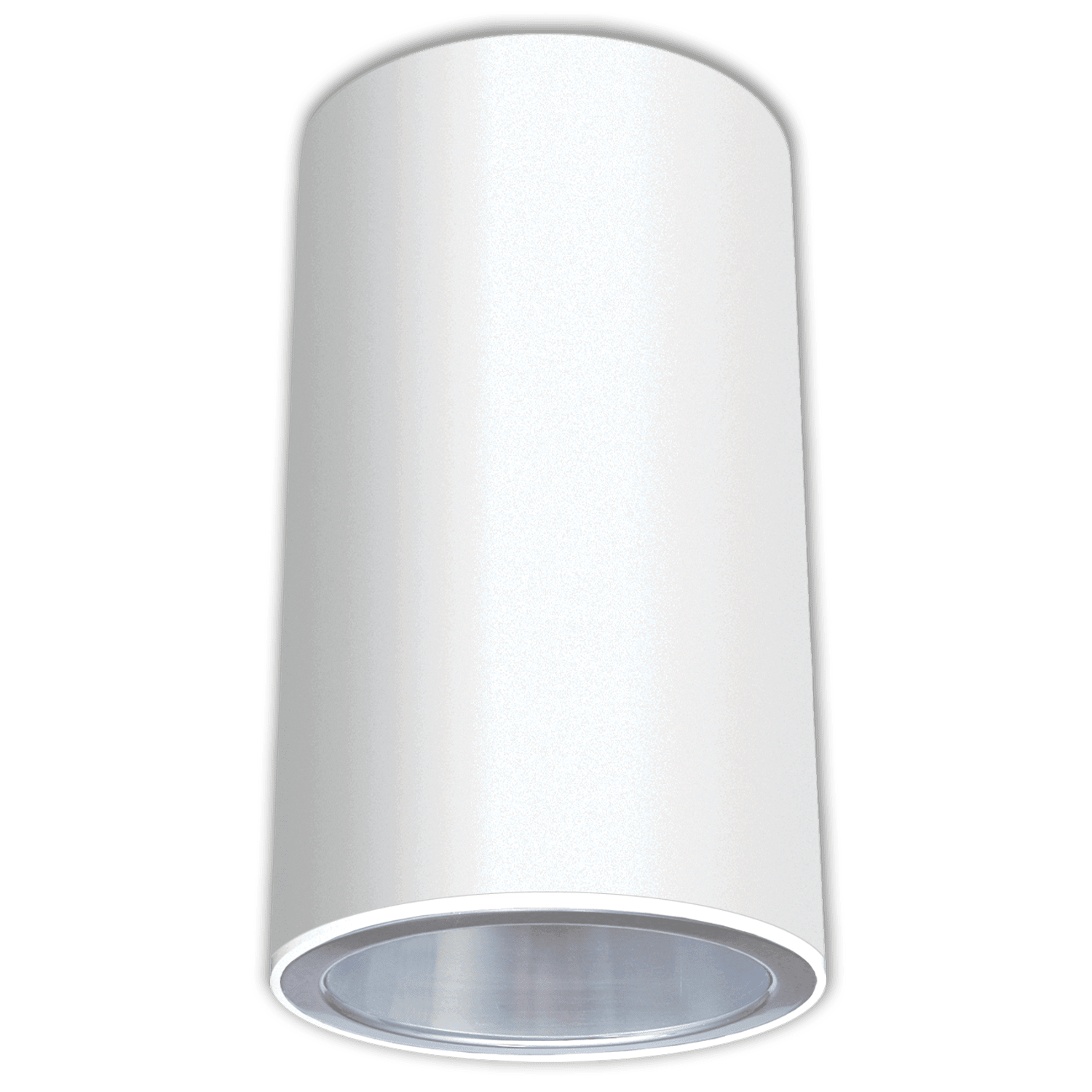

SSR-09620 9" x 16" Symphony Open Appearance Cylinder Downlight

Surface, Pendant or Wall Mount • Swivel Mount Optional

2500-6500L • 3 Beam Spreads Available • Wet Listing Optional • Used in conjunction with Symphony Remote Drivers

Product Specifications

  • Listings/Codes: FCC Part 15, IEC/EN 60601-1-2, UL Wet-Listed
  • Type: Cylinder
  • Aperture/Size: 9″
  • Mounting: Aircraft Cable, Pendant, Surface, Wall
  • Shape: Round
  • Lumens: 2742, 3819, 5007, 5739
  • Installation Type: New Construction, Remote Driver
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 36.9, 44.7, 59.4, 72.7
  • Voltage: 120-277
  • Dimming: 0-10V, DMX
  • Lens: Open Look
  • Trim: Flare
  • Fixture Depth: 16″
  • Emergency Options: Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim & Housing Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
