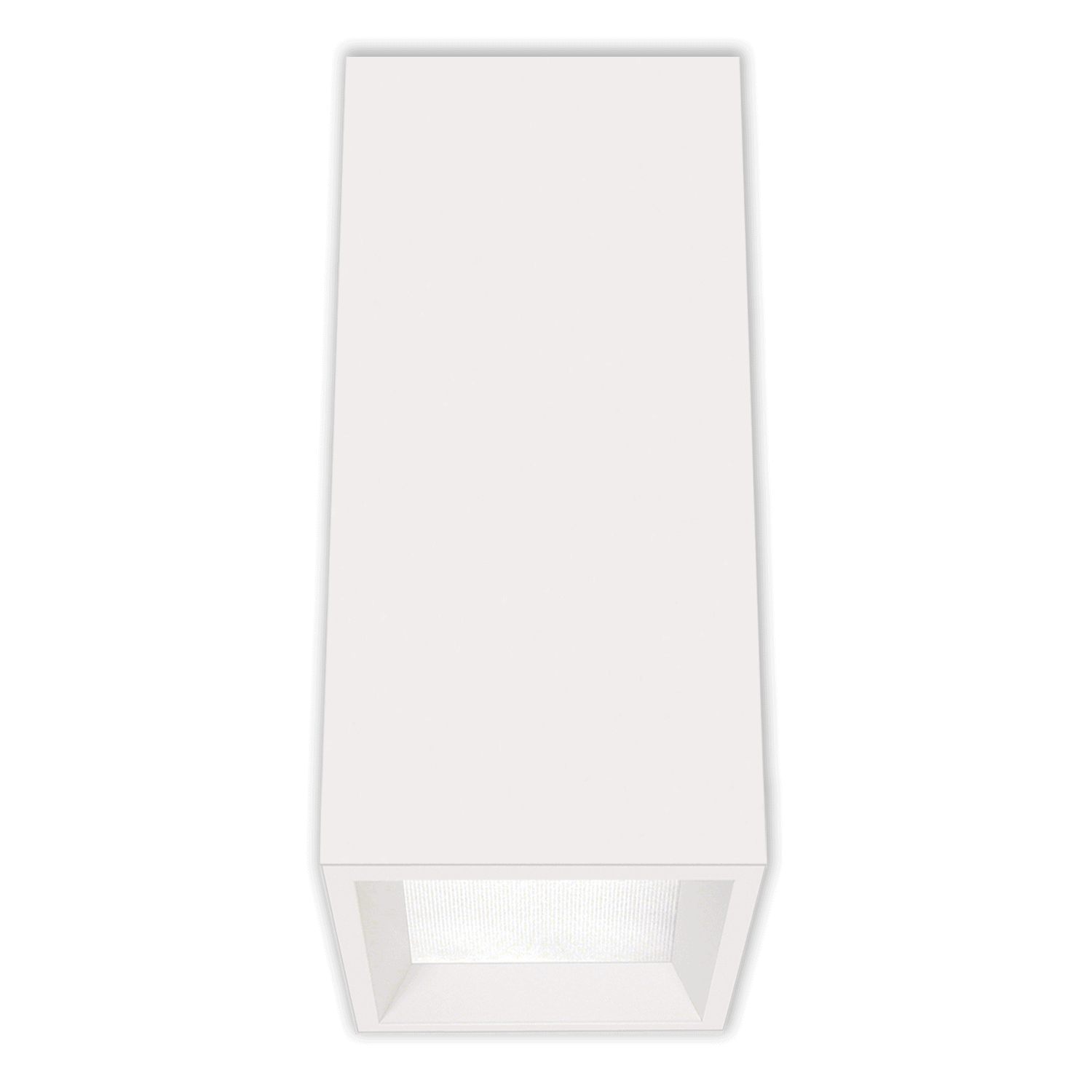

LSS-07545 7" x 14" Lensed Square Cylinder

Surface, Pendant or Wall Mount

2500L • Swivel Mount Optional • WFL Distribution • Wet Listing Optional

Product Specifications

  • Listings/Codes: -40°C Temperature Rating, FCC Part 15, IEC/EN 60601-1-2, UL Wet-Listed
  • Type: Cylinder
  • Aperture/Size: 7″
  • Mounting: Aircraft Cable, Pendant, Surface, Wall
  • Shape: Square
  • Lumens: 2304
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 34.7
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, EcoSystem
  • Lens: Regressed
  • Trim: Flare
  • Fixture Depth: 14″
  • Emergency Options: Remote Battery Backup

Beam Spread

  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
