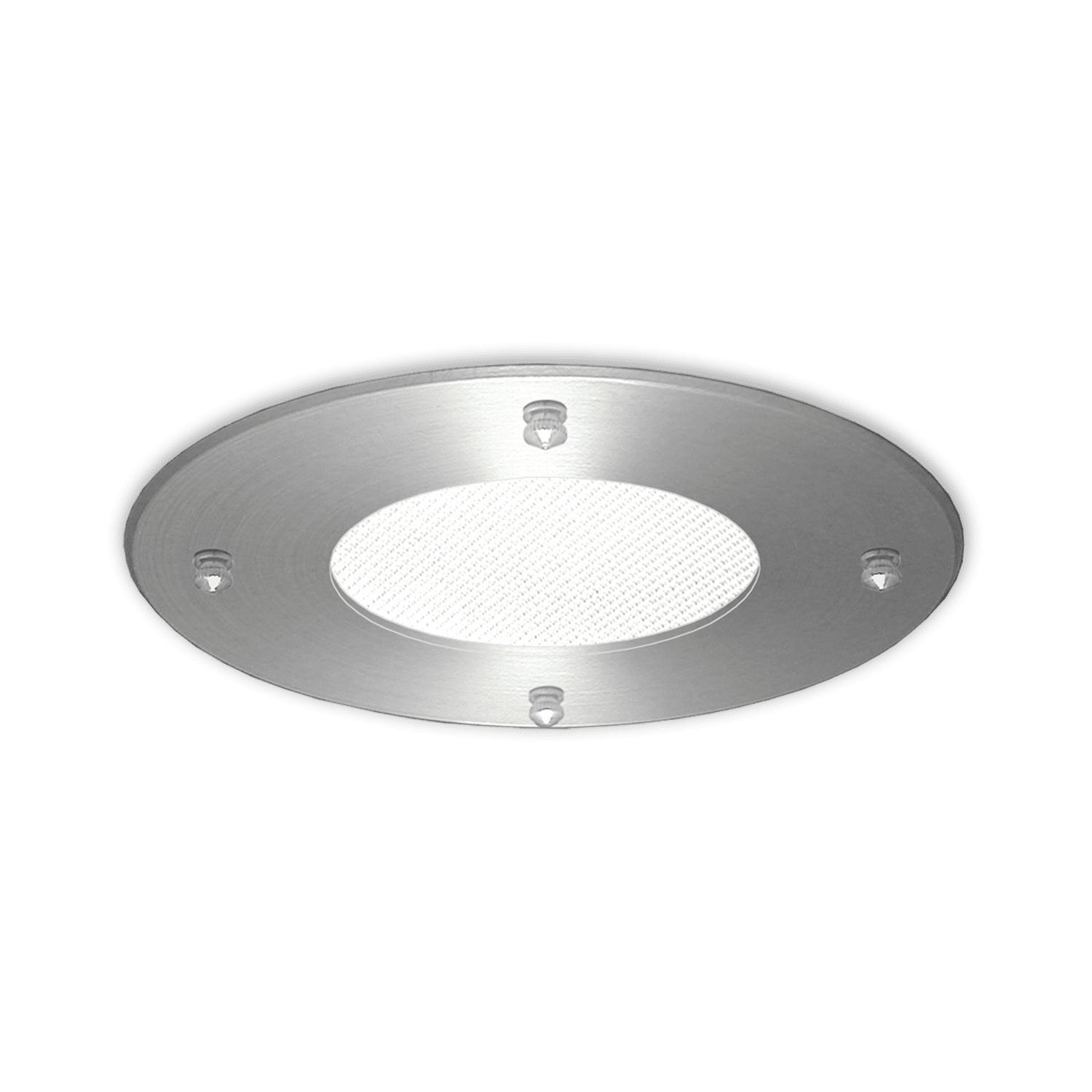

LRR-04017 4" Porthole Downlight

Type IC • Flat Trim • Optional Knurled Finials

1000-2000L • Dead Front Option Available

Product Specifications

  • Listings/Codes: -40°C Temperature Rating, Air Tight, Build America, Buy America (BABAA), FCC Part 15, IC Rated, IEC/EN 60601-1-2, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 4″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 827, 1429, 1796
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color Filter
  • Wattage: 10.4, 21, 28.7
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX
  • Lens: Flat
  • Trim: Dead Front, Glow Ring, Porthole
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Brushed Nickel
    Brushed Nickel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
