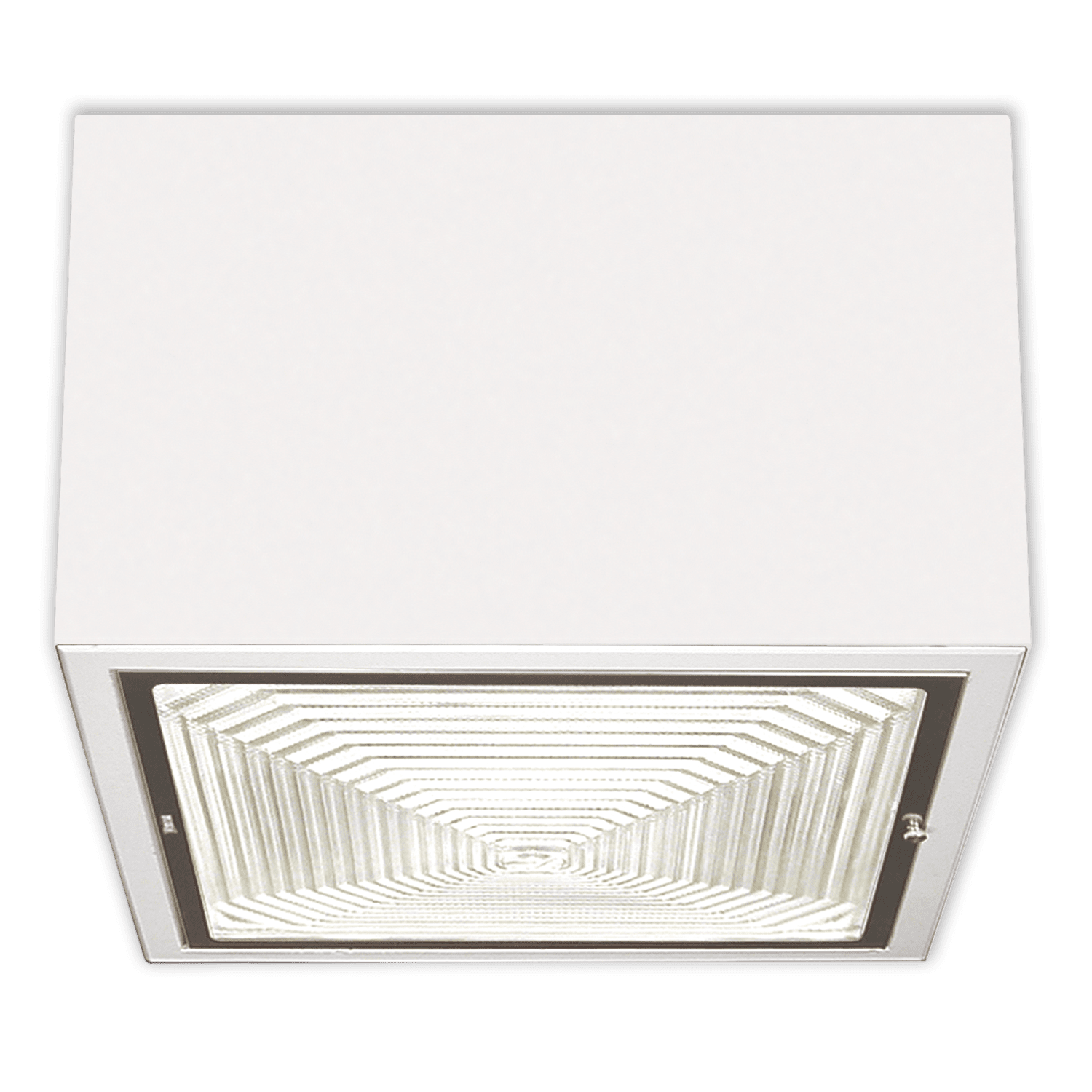

LSS-13560 13" x 9" Classic K Lens Surface Downlight

Surface, Pendant or Wall Mount • Vandal Lens Available

3500-6500L • Swivel Mount Optional • WFL Distribution • Wet Listing Optional • Kirlin's Original Square Fresnel Lens (or see options)

Product Specifications

  • Listings/Codes: FCC Part 15, IEC/EN 60601-1-2, UL Wet-Listed, Vandal Resistant
  • Type: Downlight
  • Aperture/Size: 7″
  • Mounting: Aircraft Cable, Pendant, Surface, Wall
  • Shape: Square
  • Lumens: 3375, 4208, 5795
  • Installation Type: New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 43.1, 57.6, 74
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, EcoSystem, Two Wire
  • Lens: K-Lens
  • Trim: Hinged Door
  • Fixture Depth: 9″
  • Emergency Options: Remote Battery Backup, Remote Inverter

Beam Spread

  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Silver Enamel
    Silver Enamel
  • Custom Finish
